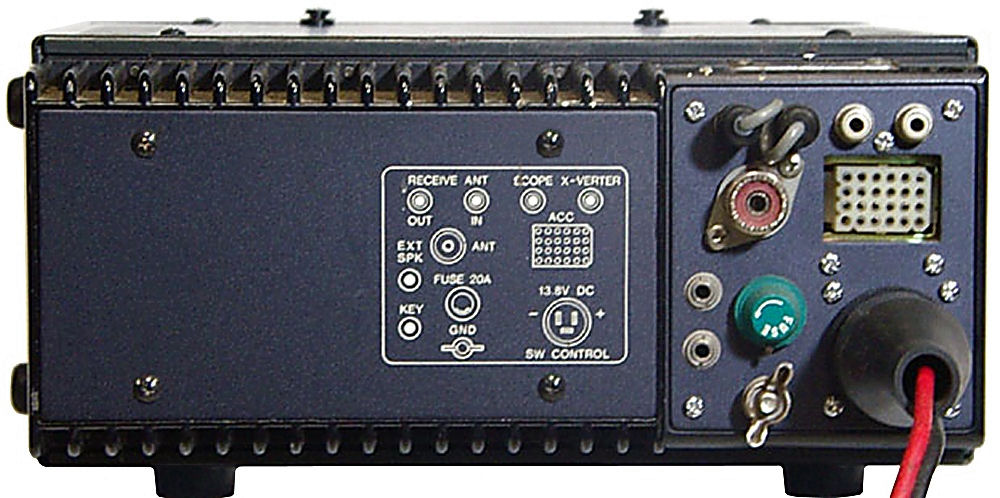

Icom IC-701
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
SSB/CW/RTTY |
| RF Power output: |
Max 100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: Max 18 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*111*311 mm |
| Weight: |
7.3 Kg |
| Manufactured: |
Japan, 1978-19xx |
| Other: |
|
| Related Documents: |
User Manual (6.2 MB) |
 |
